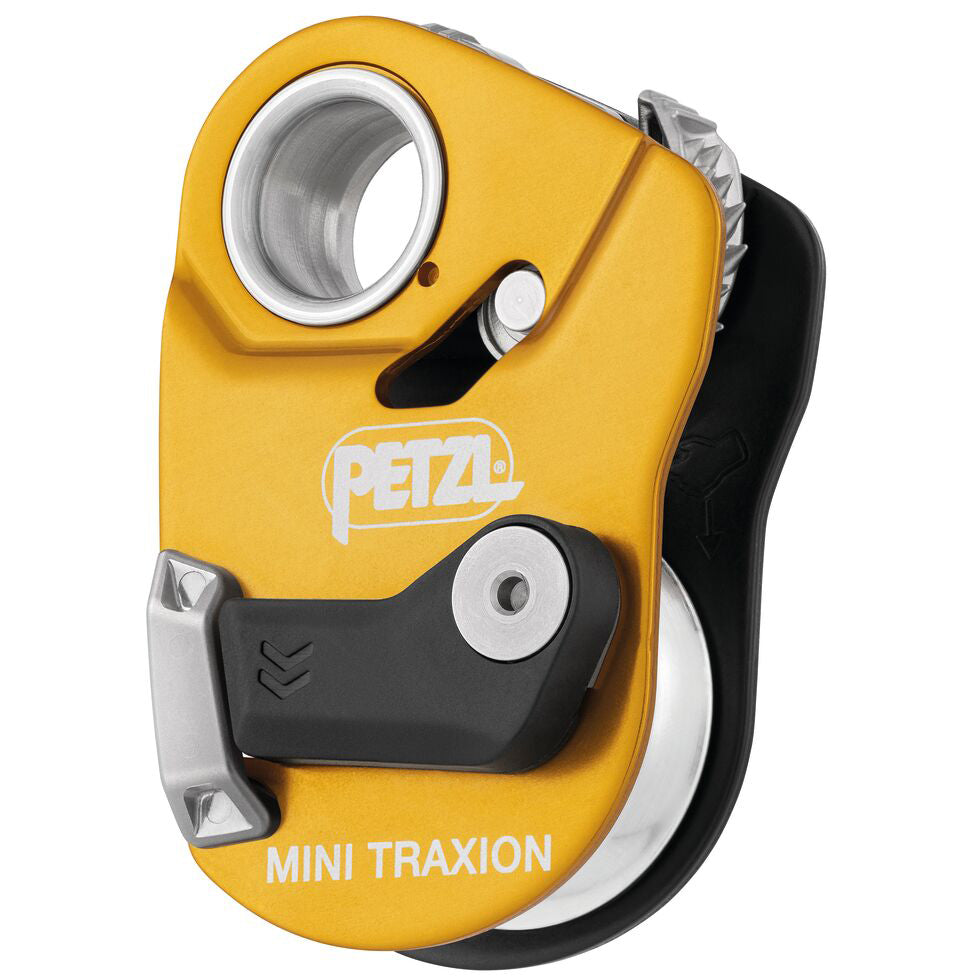

Petzl Mini Traxion Pulley

Petzl Mini Traxion Pulley

Rs. 13,700.00
Skip to product information
Petzl Mini Traxion Pulley

Petzl Mini Traxion Pulley

petzl

Rs. 13,700.00

Inclusive of all taxes

High-efficiency, openable progress-capture pulley

Designed for hauling and rescue, MINI TRAXION is an openable progress-capture pulley that allows the rope to be installed while the pulley is connected to the anchor. The large-diameter sheave mounted on sealed ball bearings provides excellent efficiency (93 %). The cam can be locked in the open position so the device can be used as a simple pulley.

Description
  • High-efficiency progress-capture pulley designed for hauling and rescue:
    • Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency (93 %), even when hauling heavy loads
    • Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
    • For use on 7 to 11 mm diameter ropes
  • Simple to use:
    • Openable side plate allows the rope to be easily installed while the pulley is connected to the anchor, limiting the risk of dropping it
    • Triple-action opening of the moving side plate is quick and easy, even with gloves
    • May be used as a simple pulley by locking the cam in the raised position
    • Compact and lightweight (150 g)
  • Durable:
    • Special side plate design protects the rope path
    • Stainless steel toothed cam for optimal durability
Specifications

Weight: 150 g

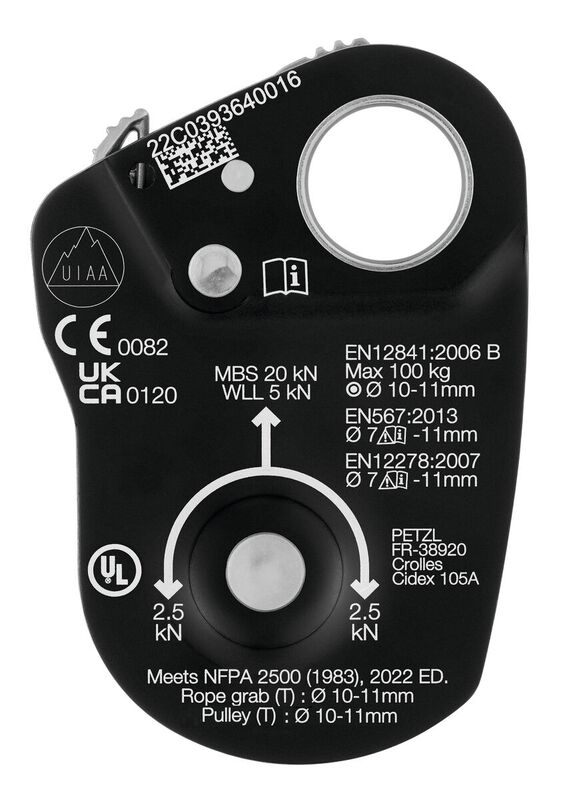

Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, NFPA 2500 Technical Use Pulley and Rope grab, XF 494: FZL-Z-Q 8.5/11, XF 494: FZL-H-Q 8.5/11

Material(s): Aluminum, stainless steel, nylon

Min. rope diameter: 7 mm

Max. rope diameter: 11 mm

Sheave type: Sealed ball bearings

Sheave diameter: 32 mm

Working load: 2 x 2.5 = 5 kN

Breaking strength: 2 x 10 = 20 kN

Efficiency: 93 %

Compatible with: RAD LINE 6 mm cord; PUR’LINE 6 mm cord only for hauling a pack
