Petzl Coeur Bolt Steel Anchors (Pack of 20)

Petzl Coeur Bolt Steel Anchors (Pack of 20)

10 mm
Rs. 8,400.00
Skip to product information
Petzl Coeur Bolt Steel Anchors (Pack of 20)

Petzl Coeur Bolt Steel Anchors (Pack of 20)

petzl

Rs. 8,400.00

Inclusive of all taxes

Variant

Standard steel anchor for interior use or non-permanent installations (pack of 20)

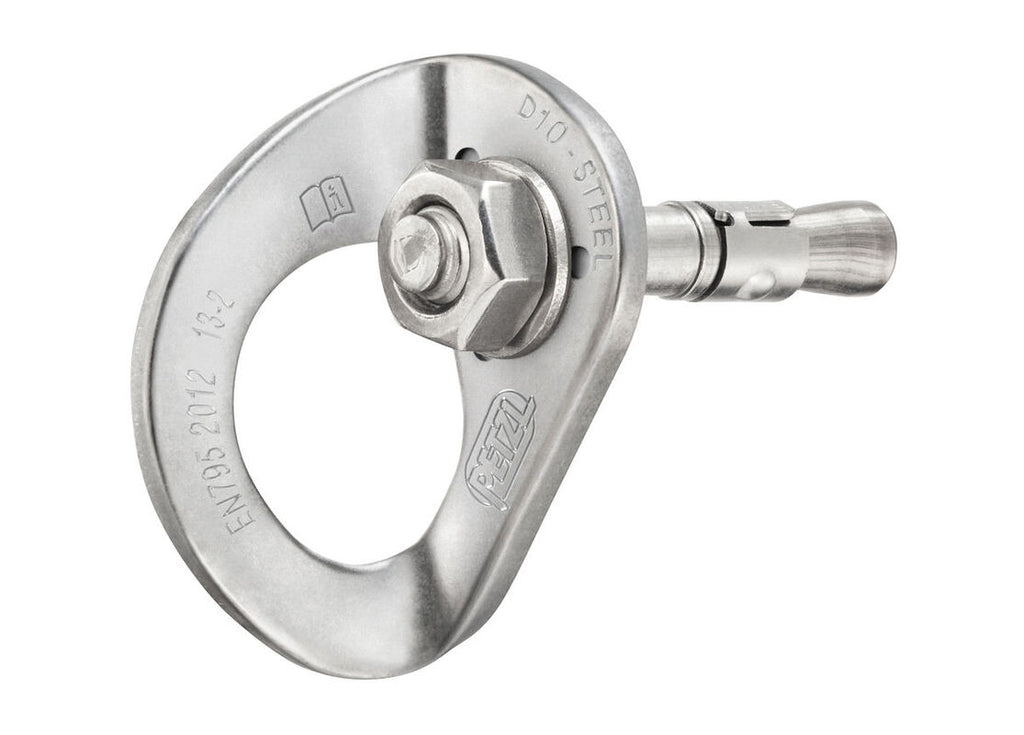

The COEUR BOLT STEEL is a standard steel anchor made up of a COEUR STEEL hanger, a bolt, and a nut. It is designed for interior use or non-permanent installations. It is available in 10 and 12 mm diameters.

Description
  • Economical choice for low-corrosion environments
  • Assembly composed of a COEUR STEEL hanger, a bolt, and a nut

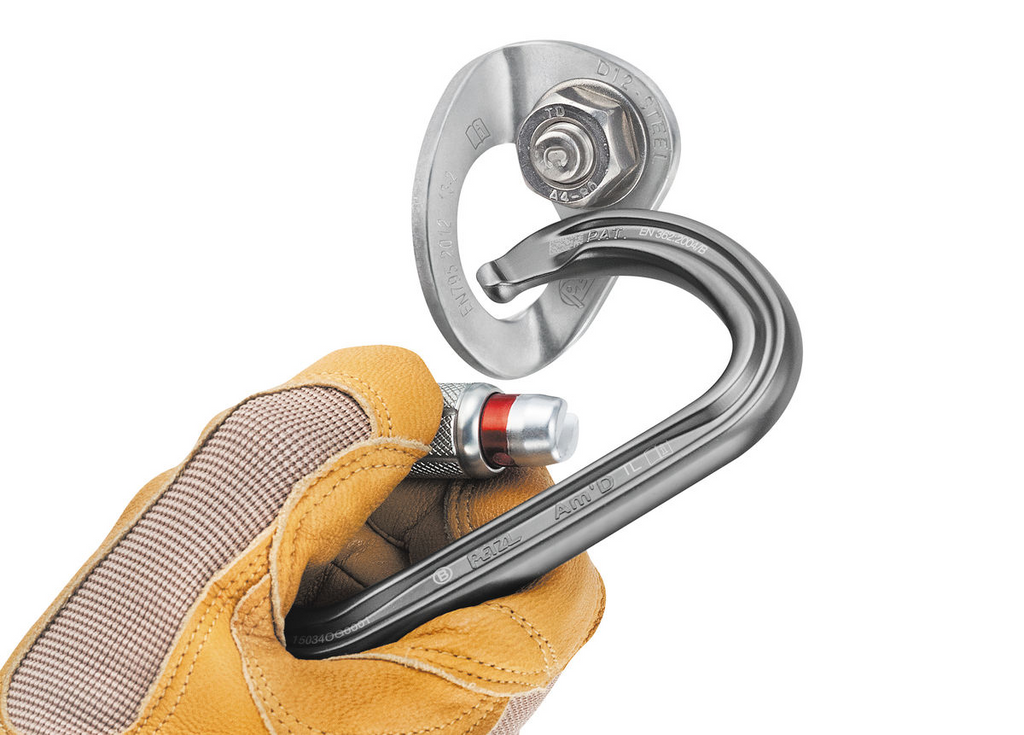

  • Easy to clip:
    • the wide, ergonomic connection point facilitates carabiner clipping

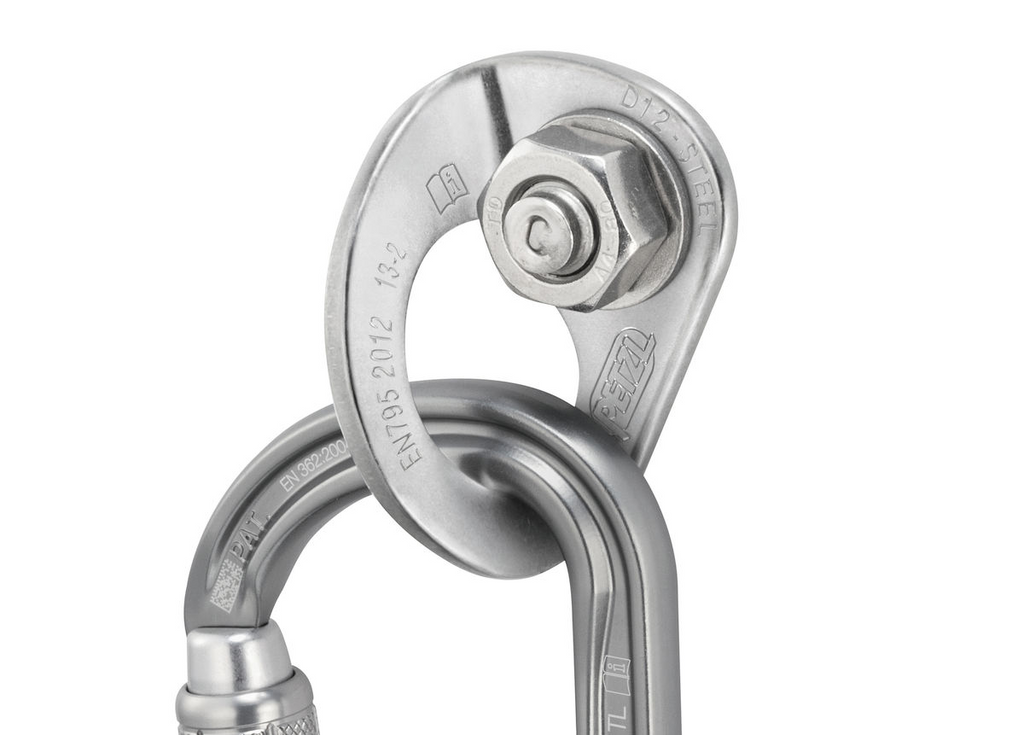

    • the width of the attachment point allows installation of two carabiners at the same time
  • Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
  • Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • Available in two bolt sizes (10 or 12 mm)

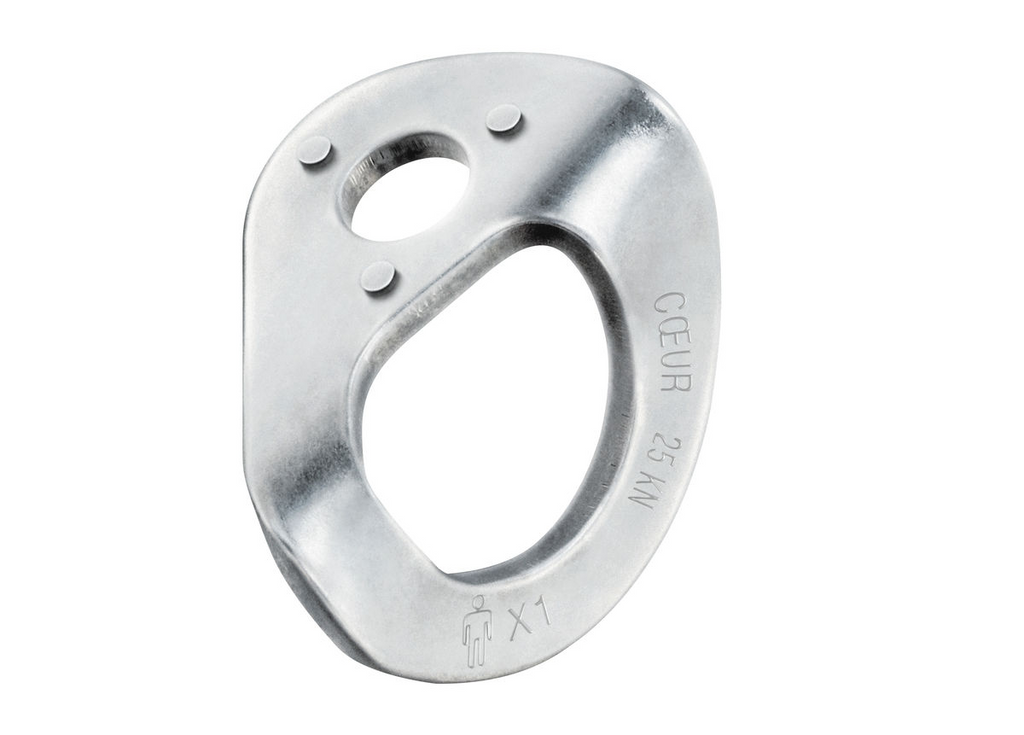

    • COEUR STEEL hangers, available separately:
      • for 10 mm diameter bolt (P36AA 10)
      • for 12 mm diameter bolt (P36AA 12)
    Note: Items sold in packs are not marked for individual resale.
Specifications

Material(s): steel

Certification(s): EN 959

Diameter: 10 mm / 12 mm

Weight: 110 g (10 mm), 135 g (12 mm)

Drilling diameter: 10 mm / 12 mm

Total bolt length: 85 mm (10 mm), 105 mm (12 mm)

Shear strength in 50 MPa concrete: 23 kN (10 mm), 25 kN (12 mm)

Pull-out strength in concrete 50 MPa: 15 kN (10 mm), 18 kN (12 mm)

Guarantee: 3 years

Inner Pack Count: 1
